- Case hardened double ball raceways provide extra capacity &
durability
- Zinc plated finish
- Top plate & legs made from 1/4” steel

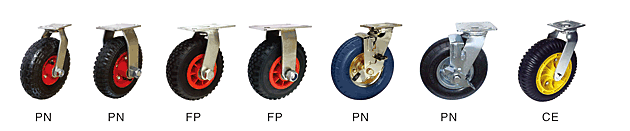

- 2 piece bolt-together hub,inflatable tube in 4 PLY tire construction
- Pneumatics tires available in both black & non-marking
gray
- New “Centipede” wheel is made out of microcellular Polyurethane
foam.It provides a lightweight,cushioned ride without worry, maintenance
or a flat tire.The hub assembly is a durable 2 piece nylon
construction.These wheels perform best with precision ball bearings
- Applications: Carts,platform trucks for industrial,commercial and
institutional environments demanding a cushioned ride.Carrying sensitive
materials,chemicals,electronics,ceramics, glass, sound & lighting
equipment.Great for the outdoors (cement,dirt,gravel,grass,
etc.)
|
FASTENERS FOR 6000 SERIES |
| TYPE |
FASTENING SHAPE |
CODE |
SIZE |
| Top Plate |
 |
01 |
OVERALL SIZE：
BOLT HOLE
PATTERN：
ATTACHING BOLT SIZE： |
159*114
125~133*62~86
φ13 |
|
| 02 |
OVERALL SIZE：
BOLT HOLE
PATTERN：
ATTACHING BOLT SIZE： |
101.6*114.3
60.3*85.7~76.2*76.2
φ11 |
|
| Threaded stem |
 |
21
23
24 |
Diameter-Teeth*Length
φ1/2-13*38.1
φ1/2-13*63.5
φ5/8-11*44.5 |
|
|
 |
 |
|
|
 |
 |
|
|
|
| 152.4 |
68 |
FOAMED POLYURETHANE |
BALL |
160 |
120.7 |
164 |
MH6060-01-FPB |
MH6060R-01-FPB |
| 203.2 |
63.5 |
PNEUMATIC |
BALL |
136 |
184.5 |
257.2 |
MH6080-01-PNB |
MH6080R-01-PNB |
| FOAMED POLYURETHANE |
BALL |
165 |
168 |
254 |
MH6080-01-FPB |
MH6080R-01-FPB |
| 254 |
76.2 |
FOAMED POLYURETHANE |
BALL |
180 |
215.9 |
301.6 |
MH6010-01-FPB |
MH6010R-01-FPB |
| CENTIPEDE WHEEL |
BALL |
113 |
215.9 |
301.6 |
MH6010-01-CEB |
MH6010R-01-CEB |
| 88.9 |
PNEUMATIC |
BALL |
159 |
235 |
306.4 |
MH6010-01-PNB |
MH6010R-01-PNB |
| 304.8 |
88.9 |
PNEUMATIC |
BALL |
204 |
273.1 |
362 |
MH6012-01-PNB |
MH6012R-01-PNB |
|
 |
| SPECIAL FINISHES |
| POLISHED GOLD FINISH |
PGF |
| BLACK OXIDE |
BO |
| NICKLE |
N |
| CHROME |
CR |
| SPRAYING |
SR |
|
|
|
