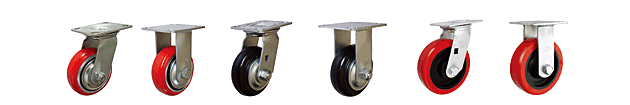

PRODUCTS | Medium heavy duty


	Zinc plated Full double bearing raceway 52mm diameter axle and lock nut Axle：12.5mm rivet Top plate and legs thickness：4mm Applications：warehouses,food service equipment,industrial handling equipment


76	35	POLYURETHANE / CAST IRON	ROLLER	180	63.5	105	MH6230-01-UCR	MH6230R-01-UCR
102	34	POLYURETHANE / CAST IRON	ROLLER	200	76.2	138	MH6240-01-UCR	MH6240R-01-UCR
	33	RUBBER / CAST IRON	ROLLER	135			MH6240-01-RCR	MH6240R-01-RCR
	38	POLYURETHANE / PLASTIC	ROLLER	180			MH6240-01-PUR	MH6240R-01-PUR
127	39	POLYURETHANE / CAST IRON	ROLLER	250	100	162	MH6250-01-UCR	MH6250R-01-UCR
	38	POLYURETHANE / PLASTIC	ROLLER	200			MH6250-01-PUR	MH6250R-01-PUR
	33	RUBBER / CAST IRON	ROLLER	135			MH6250-01-RCR	MH6250R-01-RCR
152	43	POLYURETHANE ON CAST IRON	ROLLER	250	114.3	192.5	MH6260-01-UCR	MH6260R-01-UCR
	38	POLYURETHANE / PLASTIC	ROLLER	200			MH6260-01-PUR	MH6260R-01-PUR
	33	RUBBER / CAST IRON	ROLLER	135			MH6260-01-RCR	MH6260R-01-RCR

FASTENERS FOR 6200 SERIES

TYPE

FASTENING SHAPE

CODE

SIZE

Top Plate

01

OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE：

95*85
70*60
φ9.5

SPECIAL FINISHES
POLISHED GOLD FINISH	PGF
BLACK OXIDE	BO
NICKLE	N
CHROME	CR
SPRAYING	SR
