SA1000

SA7300

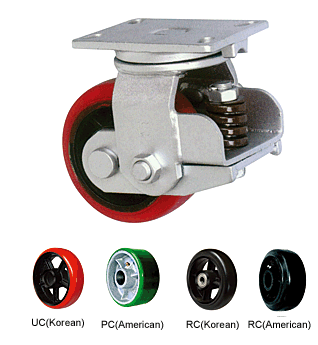

PRODUCTS | Shock absorbing

Plane bearing
top plate 11mm，legs 8mm
zinc plated


152.4	70	POLYURETHANE/CAST IRON	BALL	900	162	203	SA7360-01-UCB	SA7360R-01-UCB
152.4	70	RUBBER/CAST IRON	BALL	300	162	203	SA7360-01-RCB	SA7360R-01-RCB
203	70	POLYURETHANE/CAST IRON	BALL	1110	184	260	SA7380-01-UCB	SA7380R-01-UCB
203	70	RUBBER/CAST IRON	BALL	400	184	260	SA7380-01-RCB	SA7380R-01-RCB

FASTENERS FOR SA7300 SERIES

TYPE

FASTENING SHAPE

CODE

SIZE

Top Plate

01

OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE：

160*120
130*84
φ13
