EH9600

EH9700

PRODUCTS | Extra heavy duty

Single ball bearing,precision machined hardened & heat treated
Kingpinless style sealed raceway.(3.43” diameter raceway with 1/2” ball bearings)
Top plate and yoke assembly:AISI 1045 drop forged steel.Legs are formed from 23/64” forged steel and are double welded for strength
Eliminates problems associated with kingpin failure
Corrosion-resistant zinc plated finish
3/4” diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway
Applications: Great for applications involving extreme shock loading,towing(EPS w/tapered bearing only),moving over cracks, uneven floors,and tarmacs,heavy mobile machinery & equipment, Extra heavy-duty material handling carts,buggies & platform trucks,ground support equipment, Extra heavy-duty warehouse and manufacturing plant applications, A frames, etc

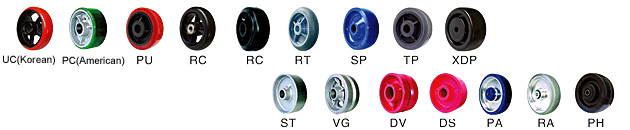

101.6	50.8	THERMAL PLASTIC RUBBER PHENOLIC POLYOLEFIN POLYURETHANE ON CAST IRON POLYURETHANE ON CAST IRON POLYURETHANE ON ALUMINIUM POLY-U/POLY-O RUBBER ON CAST IRON SOLID POLYURETHANE STEEL V-GROOVE	ROLLER ROLLER ROLLER ROLLER BALL ROLLER ROLLER ROLLER ROLLER ROLLER ROLLER	136 363 318 363 363 363 363 159 363 454 454	81.0	101.6	EH9740-01-TPR EH9740-01-PHR EH9740-01-XDPR EH9740-01-PCR EH9740-01-UCB EH9740-01-PAR EH9740-01-PUR EH9740-01-RCR EH9740-01-SPR EH9740-01-STR EH9740-01-VGR	EH9740R-01-TPR EH9740R-01-PHR EH9740R-01-XDPR EH9740R-01-PCR EH9740R-01-UCB EH9740R-01-PAR EH9740R-01-PUR EH9740R-01-RCR EH9740R-01-SPR EH9740R-01-STR EH9740R-01-VGR
127	50.8	POLYOLEFIN THERMAL PLASTIC RUBBER PHENOLIC POLYURETHANE ON CAST IRON POLYURETHANE ON CAST IRON POLYURETHANE ON ALUMINIUM POLY-U/POLY-O RUBBER ON CAST IRON ROUND THERMAL PLASTIC RUBBER SOLID POLYURETHANE SOLID POLYURETHANE DUCTILE STEEL STEEL V-GROOVE	ROLLER ROLLER ROLLER ROLLER BALL ROLLER ROLLER ROLLER ROLLER ROLLER BALL ROLLER ROLLER ROLLER	454 159 454 499 499 499 408 159 159 454 544 635 499 499	108.0	114.3	EH9750-01-XDPR EH9750-01-TPR EH9750-01-PHR EH9750-01-PCR EH9750-01-UCB EH9750-01-PAR EH9750-01-PUR EH9750-01-RCR EH9750-01-RTR EH9750-01-SPR EH9750-01-SPB EH9750-01-DSR EH9750-01-STR EH9750-01-VGR	EH9750R-01-XDPR EH9750R-01-TPR EH9750R-01-PHR EH9750R-01-PCR EH9750R-01-UCB EH9750R-01-PAR EH9750R-01-PUR EH9750R-01-RCR EH9750R-01-RTR EH9750R-01-SPR EH9750R-01-SPB EH9750R-01-DSR EH9750R-01-STR EH9750R-01-VGR
152.4	50.8	POLYOLEFIN POLYOLEFIN POLYOLEFIN POLYOLEFIN THERMAL PLASTIC RUBBER PHENOLIC POLYURETHANE ON CAST IRON POLYURETHANE ON CAST IRON POLYURETHANE ON ALUMINIUM POLY-U/POLY-O RUBBER ON CAST IRON ROUND THERMAL PLASTIC RUBBER SOLID POLYURETHANE SOLID POLYURETHANE SS SOLID POLY-U DUCTILE STEEL STEEL V-GROOVE POLYOLEFIN	ROLLER PLAIN PLAIN BALL ROLLER ROLLER ROLLER BALL ROLLER ROLLER ROLLER ROLLER ROLLER BALL ROLLER ROLLER ROLLER ROLLER PLAIN	540 540 540 540 590 180 540 560 560 560 454 227 186 544 635 635 635 635 318	114.3	127	EH9760-01-XDPR EH9760-01-XDPP EH9760-01-XDPP EH9760-01-XDPB EH9760-01-TPR EH9760-01-PHR EH9760-01-PCR EH9760-01-UCB EH9760-01-PAR EH9760-01-PUR EH9760-01-RCR EH9760-01-RTR EH9760-01-SPR EH9760-01-SPB EH9760-01-SPR EH9760-01-DSR EH9760-01-STR EH9760-01-VGR EH9760-01-POP	EH9760R-01-XDPR EH9760R-01-XDPP EH9760R-01-XDPP EH9760R-01-XDPB EH9760R-01-TPR EH9760R-01-PHR EH9760R-01-PCR EH9760R-01-UCB EH9760R-01-PAR EH9760R-01-PUR EH9760R-01-RCR EH9760R-01-RTR EH9760R-01-SPR EH9760R-01-SPB EH9760R-01-SPR EH9760R-01-DSR EH9760R-01-STR EH9760R-01-VGR EH9760R-01-POP
203.2	50.8	DURAPLAS(POLYOLEFIN) THERMAL PLASTIC RUBBER PHENOLIC POLYURETHANE ON CAST IRON POLYURETHANE ON CAST IRON POLYURETHANE ON ALUMINIUM POLY-U/POLY-O POLY-U/POLY-O RUBBER ON CAST IRON ROUND THERMAL PLASTIC RUBBER SOLID POLYURETHANE SOLID POLYURETHANE DUCTILE STEEL STEEL V-GROOVE	ROLLER ROLLER ROLLER ROLLER BALL ROLLER ROLLER ROLLER ROLLER ROLLER ROLLER BALL ROLLER ROLLER ROLLER	635 159 635 635 635 499 499 272 220 590 630 630 630 630	165.1	152.7	EH9780-01-XDPR EH9780-01-TPR EH9780-01-PHR EH9780-01-PCR EH9780-01-UCB EH9780-01-PAR EH9780-01-PUR EH9780-01-PUR EH9780-01-RCR EH9780-01-RTR EH9780-01-SPR EH9780-01-SPB EH9780-01-DSR EH9780-01-STR EH9780-01-VGR	EH9780R-01-XDPR EH9780R-01-TPR EH9780R-01-PHR EH9780R-01-PCR EH9780R-01-UCB EH9780R-01-PAR EH9780R-01-PUR EH9780R-01-PUR EH9780R-01-RCR EH9780R-01-RTR EH9780R-01-SPR EH9780R-01-SPB EH9780R-01-DSR EH9780R-01-STR EH9780R-01-VGR
254	63.5	EXTREME POLY-U/STEEL PHENOLIC POLYURETHANE ON CAST IRON POLYURETHANE ON CAST IRON RUBBER ON CAST IRON STEEL DUCTILE STEEL YOKE ONLY	TAPERED ROLLER ROLLER BALL ROLLER ROLLER ROLLER	2098 1315 1361 1361 454 1225 2268	187.3	178	EH9710-01-EPCT EH9710-01-PHR EH9710-01-PCR EH9710-01-UCB EH9710-01-RCR EH9710-01-STR EH9710-01-DSR EH9710-01-Y	EH9710R-01-EPCT EH9710R-01-PHR EH9710R-01-PCR EH9710R-01-UCB EH9710R-01-RCR EH9710R-01-STR EH9710R-01-DSR EH9710R-01-Y
304.8	63.5	EXTREME POLY-U/STEEL PHENOLIC POLYURETHANE ON CAST IRON POLYURETHANE ON CAST IRON RUBBER ON CAST IRON STEEL YOKE ONLY	TAPERED ROLLER ROLLER BALL ROLLER ROLLER	2268 1588 1588 1588 544 1134	227.0	200	EH9712-01-EPCT EH9712-01-PHR EH9712-01-PCR EH9712-01-UCB EH9712-01-RCR EH9712-01-STR EH9712-01-Y	EH9712R-01-EPCT EH9712R-01-PHR EH9712R-01-PCR EH9712R-01-UCB EH9712R-01-RCR EH9712R-01-STR EH9712R-01-Y
