LM5300















































PRODUCTS  |    Light medium duty
  • Case hardened double ball raceways provide extra capacity & durability
  • Sealed raceway is standard with top plate fastener type
  • High capacity with low overall heights
  • Bright zinc finish standard
  • Applications:business machines,copiers,printers,diagnostic equipment ,computer main
    frame tower carts and stands,vending machines,magazine racks, store check-out racks,
    displays,video games,pianos,etc


单位（mm）
FASTENERS FOR 3300 SERIES
TYPE FASTENING SHAPE CODE SIZE
Top Plate 01
OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE： 		69.8*95.3
44.5*74.6
φ7.9
Grip ring stem 11 φ11.1*38.1
Threaded stem 21
 Diameter-Teeth*Length
φ1/2-13*38.1
Hollow Kingpin 71
72		 φ9.5
φ12.7



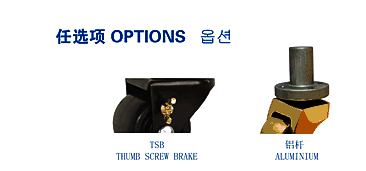

SPECIAL FINISHES
POLISHED GOLD FINISH PGF
BLACK OXIDE BO
NICKLE N
CHROME CR
SPRAYING SR

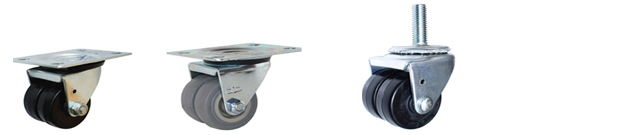

DUAL WHEEL STYLE
38 2*18 HARD RUBBER
THERMAL PLASTIC RUBBER
HEAVY DUTY PLASTIC 		PLAIN 118
100
118		 47.6 71.4 LM3315-**-HRP
LM3315-**-TPP
LM3315-**-HPP
50 2*20.6 HARD RUBBER
THERMAL PLASTIC RUBBER
HEAVY DUTY PLASTIC 		PLAIN 118
100
118		 47.6 71.4 LM3322-**-HRP
LM3322-**-TPP
LM3322-**-HPP

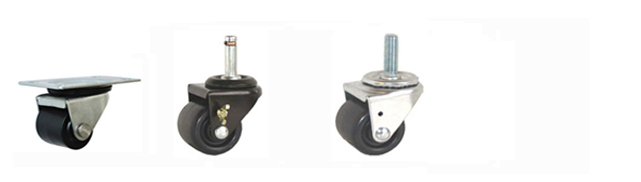

SINGLE WHEEL STYLE
36 43 POLYOLEFIN PLAIN 118 47.6 71.4 LM3315-**-HPP
50 30.1 POLYOLEFIN PLAIN 118 47.6 71.4 LM3320-**-HPP
