PRODUCTS | Light medium duty

304 STAINLESS STEEL.HIGHLY polished finish provides attractive appearance
Highly resistant to conditions that would normally corrode and rust regular steel casters
Seals in both the upper and lower raceways standard.(Not designed for high-temp applications).
Please inquire for alternatives for high-temp applications or use S5000 series(LMS5000 series does not have seals or grease in the raceways)
Double ball raceways provide extra capacity & durability
Ball bearings in the raceway are made of high quality 431 stainless steel
431 stainless steel ball bearings are also available in the wheel
Applications:Ideal for wet,damp conditions or other corrosive environments such as wash downs, restaurants,food processing plants,hospitals & other institutional applications,etc

FASTENERS FOR S5200 SERIES

TYPE

FASTENING SHAPE

CODE

SIZE

Top Plate

OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE：

63.5*92.1
44.5*73.0~76.2
φ7.9

OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE：

95.3*114.3
66.7*92.1~76.2*76.2
φ9.5

OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE：

79.4*104.8
44.5*76.2~60.3*85.7
φ9.5

OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE：

88.9*88.9
41.3*66.7~69.9*69.9
φ7.9

Grip ring stem

φ21.5*55.6

Threaded stem

21
22
23
26N

Diameter-Teeth*Length
φ1/2-13*25.4
φ1/2-13*38.1
φ1/2-13*55.6
φ1/2-13*71.4

Expandable adapter stems

25
26
27
28
29

FOR φ34.9 I.D. φ38.1 O.D.TUBING
FOR φ38.1 I.D. φ41.3 O.D.TUBING
FOR φ22.2 I.D. φ25.4 O.D.TUBING
FOR φ25.4 I.D. φ28.6 O.D.TUBING
FOR φ28.6 I.D. φ31.8 O.D.TUBING

Octagon stem

41
41B
42

22.2*22.2*57.2
19.1*54 with 3 cross drilled holes
22.2*50.8 with φ7.9 cross drilled hole 25.4 up

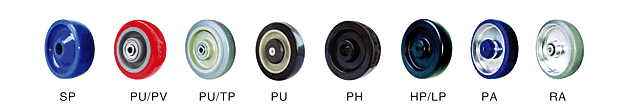

76.2	31.8	SOLID POLYURETHANE POLYOLEFIN POLYOLEFIN POLY-U/POLY-O(GRAY ON BEIGE) POLY-U/POLY-O(GRAY ON BEIGE) THERMAL PLASTIC RUBBER THERMAL PLASTIC RUBBER POLYURETHANE ON ALUMINIUM RUBBER ON ALUMINIUM YOKE AXLE & NUT	DELRIN PLAIN SS BALL PLAIN SS BALL PLAIN SS BALL SS BALL SS BALL	136 136 136 113 113 113 113 159 113	73	103.2	LMS5230--SPD LMS5230--LPP LMS5230--LPB LMS5230--PUP LMS5230--PUB LMS5230--TPP LMS5230--TPB LMS5230--PAB LMS5230--RAB LMS5230--YAN	LMS5230R--SPD LMS5230R--LPP LMS5230R--LPB LMS5230R--PUP LMS5230R--PUB LMS5230R--TPP LMS5230R--TPB LMS5230R--PAB LMS5230R--RAB LMS5230R--YAN
88.9	31.8	SOLID POLYURETHANE POLY-U/POLY-O(GRAY ON BEIGE) POLY-U/POLY-O(GRAY ON BEIGE) THERMAL PLASTIC RUBBER THERMAL PLASTIC RUBBER POLYURETHANE ON ALUMINIUM RUBBER ON ALUMINIUM YOKE AXLE & NUT	DELRIN PLAIN SS BALL PLAIN SS BALL SS BALL SS BALL	159 113 113 102 102 159 113	82.6	117.5	LMS5235--SPD LMS5235--PUP LMS5235--PUB LMS5235--TPP LMS5235--TPB LMS5235--PAB LMS5235--RAB LMS5235--YAN	LMS5235R--SPD LMS5235R--PUP LMS5235R--PUB LMS5235R--TPP LMS5235R--TPB LMS5235R--PAB LMS5235R--RAB LMS5235R--YAN
101.6	31.8	SOLID POLYURETHANE POLYOLEFIN POLY-U/POLY-O(GRAY ON BEIGE) POLY-U/POLY-O(GRAY ON BEIGE) THERMAL PLASTIC RUBBER THERMAL PLASTIC RUBBER POLYURETHANE ON ALUMINIUM RUBBER ON ALUMINIUM YOKE AXLE & NUT	DELRIN PLAIN PLAIN SS BALL PLAIN SS BALL SS BALL SS BALL	159 136 125 125 113 113 159 113	88.9	130.2	LMS5240--SPD LMS5240--LPP LMS5240--PUP LMS5240--PUB LMS5240--TPP LMS5240--TPB LMS5240--PAB LMS5240--RAB LMS5240-**-YAN	LMS5240R--SPD LMS5240R--LPP LMS5240R--PUP LMS5240R--PUB LMS5240R--TPP LMS5240R--TPB LMS5240R--PAB LMS5240R--RAB LMS5240R-**-YAN
127	31.8	SOLID POLYURETHANE POLYOLEFIN POLY-U/POLY-O(GRAY ON BEIGE) POLY-U/POLY-O(GRAY ON BEIGE) THERMAL PLASTIC RUBBER THERMAL PLASTIC RUBBER ROUND THERMAL PLASTIC RUBBER POLYURETHANE ON ALUMINIUM RUBBER ON ALUMINIUM YOKE AXLE & NUT	DELRIN PLAIN PLAIN SS BALL PLAIN SS BALL SS BALL SS BALL SS BALL	159 147 136 136 113 113 113 159 113	101.6	157.2	LMS5250--SPD LMS5250--LPP LMS5250--PUP LMS5250--PUB LMS5250--TPP LMS5250--TPB LMS5250--RTB LMS5250--PAB LMS5250--RAB LMS5250--YAN	LMS5250R--SPD LMS5250R--LPP LMS5250R--PUP LMS5250R--PUB LMS5250R--TPP LMS5250R--TPB LMS5250R--RTB LMS5250R--PAB LMS5250R--RAB LMS5250R--YAN
152.4	31.8	SOLID POLYURETHANE POLY-U/POLY-O(GRAY ON BEIGE) THERMAL PLASTIC RUBBER YOKE AXLE & NUT	DELRIN SS BALL SS BALL	159 147 136	114.3	187.3	LMS5260--SPD LMS5260--PUB LMS5260--TPB LMS5260--YAN	LMS5260R--SPD LMS5260R--PUB LMS5260R--TPB LMS5260R--YAN
