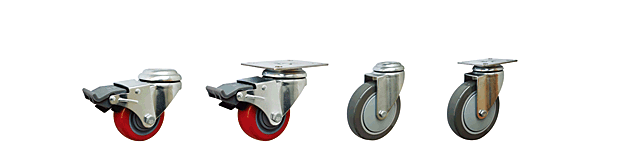

PRODUCTS | Light medium duty

Full double ball bearing raceways
Axle:9mm diameter axle and lock nut
Applications:light-medium handling equipment in warehouses or factories

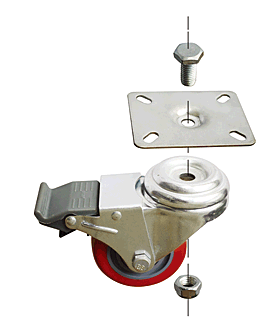

FASTENERS FOR 5300 SERIES

TYPE

FASTENING SHAPE

CODE

SIZE

Top Plate

01

OVERALL SIZE：
BOLT HOLE PATTERN：
ATTACHING BOLT SIZE：

80*105
50~60*70~80
φ7.9

Hollow Kingpin

71

M12

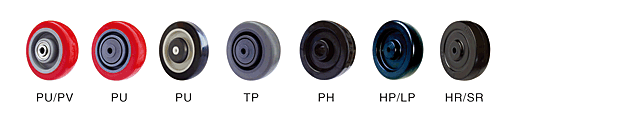

76.2	31.8	POLY-U ON POLY-O PVC/PLASTIC THERMAL PLASTIC RUBBER SOFT RUBBER HARD RUBBER POLYOLEFIN POLYOLEFIN	BALL BALL BALL PLAIN PLAIN BOLT BOLT	90 90 90 55 90 70 90	73	100/103	LM5330--PUB LM5330--PVB LM5330--TPB LM5330--SRP LM5330--HRP LM5330--LPO LM5330-**-HPO	LM5330R--PUB LM5330R--PVB LM5330R--TPB LM5330R--SRP LM5330R--HRP LM5330R--LPO LM5330R-**-HPO
101.6	31.8	POLY-U ON POLY-O PVC/PLASTIC THERMAL PLASTIC RUBBER SOFT RUBBER HARD RUBBER POLYOLEFIN POLYOLEFIN	BALL BALL BALL PLAIN PLAIN BOLT BOLT	100 100 100 75 100 80 100	89	127/130	LM5340--PUB LM5340--PVB LM5340--TPB LM5340--SRP LM5340--HRP LM5340--LPO LM5340-**-HPO	LM5340R--PUB LM5340R--PVB LM5340R--TPB LM5340R--SRP LM5340R--HRP LM5340R--LPO LM5340R-**-HPO
127	31.8	POLY-U ON POLY-O PVC/PLASTIC THERMAL PLASTIC RUBBER SOFT RUBBER HARD RUBBER POLYOLEFIN POLYOLEFIN	BALL BALL BALL PLAIN PLAIN BOLT BOLT	120 120 120 85 120 90 120	100	157/160	LM5350--PUB LM5350--PVB LM5350--TPB LM5350--SRP LM5350--HRP LM5350--LPO LM5350-**-HPO	LM5350R--PUB LM5350R--PVB LM5350R--TPB LM5350R--SRP LM5350R--HRP LM5350R--LPO LM5350R-**-HPO

SPECIAL FINISHES
POLISHED GOLD FINISH	PGF
BLACK OXIDE	BO
NICKLE	N
CHROME	CR
SPRAYING	SR
