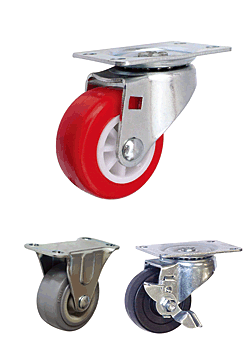

PRODUCTS | Light medium duty

Most economical casters for unlimited,light-duty applications
Large single-ball raceways deeply embossed for strength and durability

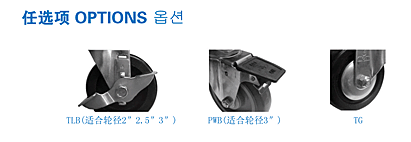

Integrated top lock brakes provide a sure lock without interfering with the roll-ability of the wheel when disengaged , unlike side-lock style brakes
Applications:Displays,dollies,platforms,racks,rolling tool boxes,food service,etc
Economy revision available in the 3”

FASTENERS FOR 4000 SERIES
TYPE	FASTENING SHAPE	CODE	WHEEL DIAMETER	OVERALL SIZE	BOLT HOLE PATTERN	BOLT SIZE
Swivel Top Plate		01	50.8	47.6*65.1	23.8*54	φ6.4
		02	63.5	69.9*98.4	44.5*76.2	φ7.9
		03	76.2	79.4*104.8	60.3*85.7~87.3	φ7.9
		04	101.6	101.6*130.2	76.2*101.6	φ9.5
Rigid top plate		01	50.8	38.1*67.5	23.8*54	φ6.4
		02	63.5	57.2*112.7	27*88.9	φ7.9
		03	76.2	63.5*125.4	30.2*101.6	φ7.9
		04	101.6	79.4*158.8	44.5*127	φ9.5

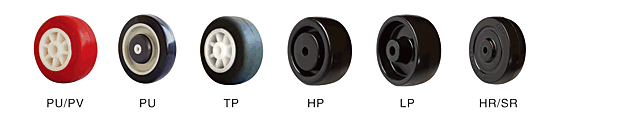

50.8	23.8	SOFT RUBBER HARD RUBBER STEEL POLYOLEFIN POLY-U/POLY-O(GRAY) YOKE AXLE & NUT	PLAIN PLAIN PLAIN PLAIN PLAIN	41 68 68 68 54 68	50.8	63.5	LM4020-01-SRP LM4020-01-HRP LM4020-01-STP LM4020-01-LPP LM4020-01-PUP LM4020-01-YAN	LM4020R-01-SRP LM4020R-01-HRP LM4020R-01-STP LM4020R-01-LPP LM4020R-01-PUP LM4020R-01-YAN
63.5	28.6	SOFT RUBBER HARD RUBBER POLYOLEFIN POLYOLEFIN POLY-U ON POLY-O THERMAL PLASTIC RUBBER STEEL YOKE AXLE & NUT	PLAIN PLAIN PLAIN PLAIN BOLT BOLT PLAIN	54 73 73 91 73 68 91 91	60.3	79.4	LM4025-01-SRP LM4025-01-HRP LM4025-01-LPP LM4025-01-HPP LM4025-01-PUO LM4025-01-TPO LM4025-01-STP LM4025-01-YAN	LM4025R-01-SRP LM4025R-01-HRP LM4025R-01-LPP LM4025R-01-HPP LM4025R-01-PUO LM4025R-01-TPO LM4025R-01-STP LM4025R-01-YAN
76.2	31.8	SOLID POLYURETHANE GRAY SOFT RUBBER SOFT RUBBER SOFT RUBBER HARD RUBBER HARD RUBBER POLYOLEFIN POLYOLEFIN POLYOLEFIN POLY-U/POLY-O(GRAY) POLY-U/POLY-O(BLUE) POLY-U/POLY-O(GRAY) PHENOLIC THERMAL PLASTIC RUBBER THERMAL PLASTIC RUBBER STEEL YOKE AXLE & NUT	DELRIN PLAIN PLAIN BALL PLAIN BALL PLAIN PLAIN BALL BALL BALL PLAIN STL BUSHING PLAIN BALL PLAIN	113 68 68 68 100 100 113 113 113 113 113 113 113 75 75 113	76.2	95.3	LM4030-01-SPD LM4030-01-SRP LM4030-01-SRP LM4030-01-SRB LM4030-01-HRP LM4030-01-HRB LM4030-01-LPP LM4030-01-HPP LM4030-01-HPB LM4030-01-PUB LM4030-01-PUB LM4030-01-PUP LM4030-01-PHS LM4030-01-TPP LM4030-01-TPB LM4030-01-STP LM4030-01-YAN	LM4030R-01-SPD LM4030R-01-SRP LM4030R-01-SRP LM4030R-01-SRB LM4030R-01-HRP LM4030R-01-HRB LM4030R-01-LPP LM4030R-01-HPP LM4030R-01-HPB LM4030R-01-PUB LM4030R-01-PUB LM4030R-01-PUP LM4030R-01-PHS LM4030R-01-TPP LM4030R-01-TPB LM4030R-01-STP LM4030R-01-YAN
101.6	38.1	SOFT RUBBER HARD RUBBER POLY-U/POLY-O(RED) STEEL	PLAIN PLAIN STL BUSHING STL BUSHING	102 136 136 136	85.7	127	LM4040-01-SRP LM4040-01-HRP LM4040-01-PUS LM4040-01-STS	LM4040R-01-SRP LM4040R-01-HRP LM4040R-01-PUS LM4040R-01-STS
	41.3	POLYOLEFIN	STL BUSHING	136			LM4040-01-XDPS	LM4040R-01-XDPS
		YOKE AXLE & NUT					LM4040-01-YAN	LM4040R-01-YAN

SPECIAL FINISHES
POLISHED GOLD FINISH	PGF
BLACK OXIDE	BO
NICKLE	N
CHROME	CR
SPRAYING	SR
